Integrated Intelligent Cabinet ZW007HJ

产品介绍

Outdoor integrated intelligent cabinet system, including cabinet, industrial air conditioner, dynamic environment monitoring system, UPS host, backup battery, automatic reclosing, lightning protection device, etc., reserve enough space for placing servers, controllers and various communications The facilities meet the needs of standardization, flexible prefabrication, rapid deployment, safety and reliability, high efficiency and energy saving, real-time management and maintenance, etc., and are widely used in industries such as operators, electric power, highway ETC cabinets, and 5G base stations.

产品特点

Appearance size: 900*900*2000mm (900*900*1600mm and 900*900*1200mm optional), with 19-inch rack installation conditions

The main material of the box body: galvanized sheet/stainless steel, lined with heat insulation material for heat insulation and flame retardant

Protection level: IP55, the outside of the cabinet can be flushed directly

Working environment temperature: -40℃-+55℃

Industrial-grade outdoor air conditioners: support automatic adjustment of the temperature inside the cabinet, and the temperature inside the cabinet should be set according to the ambient temperature in each region

Equipped with dynamic environment monitoring such as smoke, water immersion, temperature and humidity, door sensor, etc. The monitoring control module supports TCP/UDP/SNMP/ModBus protocol, and supports remote system upgrade

Anti-theft and anti-vandalism: The three-point structure of pull rod and lock piece is adopted, and the structure is firm. The door magnetic monitoring system monitors the status of the cabinet door. Video surveillance can be added to support unboxing video surveillance

The configuration camera can be linked to capture

High-efficiency switching power supply is used for power distribution, which can be equipped with 4 rectifier modules. Support hot swap, using load current sharing technology

Using the inverter power system, if the mains power is abnormal, the inverter will automatically convert DC to AC, and there will be no interruption in the online switching of AC and DC

Lithium iron phosphate battery is used as a backup power supply, 48V/50Ah, 48V /100Ah, 48V150Ah are optional, and backup configuration can be added

The monitoring module realizes remote implementation monitoring and remote fault location

Built-in maintenance light strip, convenient for installation and maintenance

Configure lightning protection module and leakage protection module

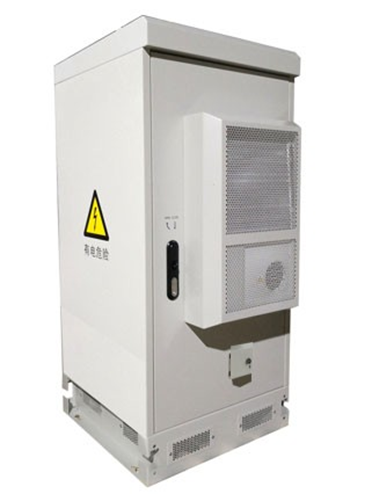

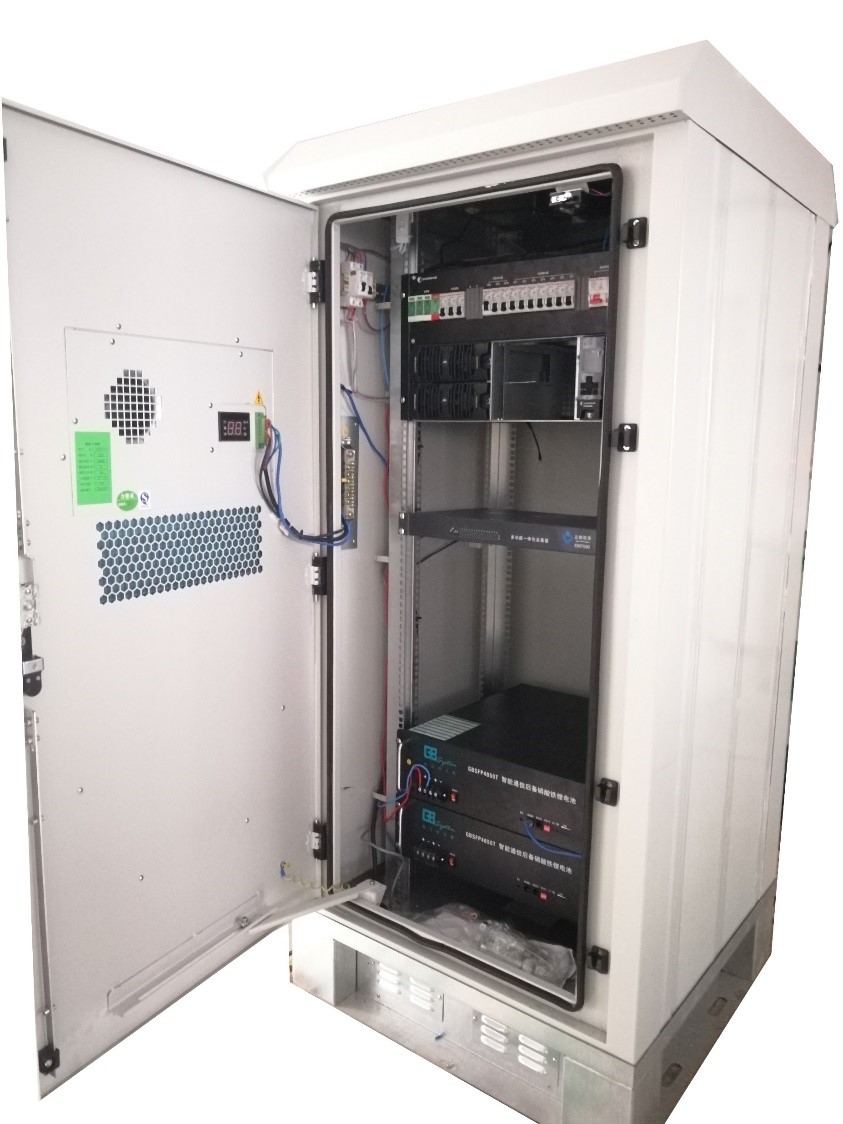

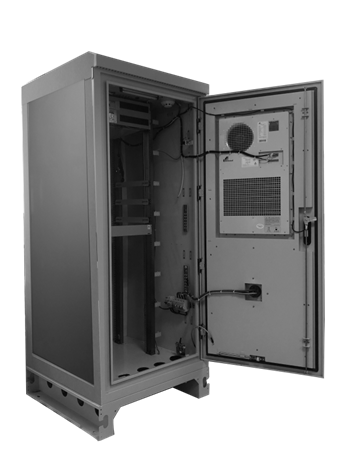

Appearance
