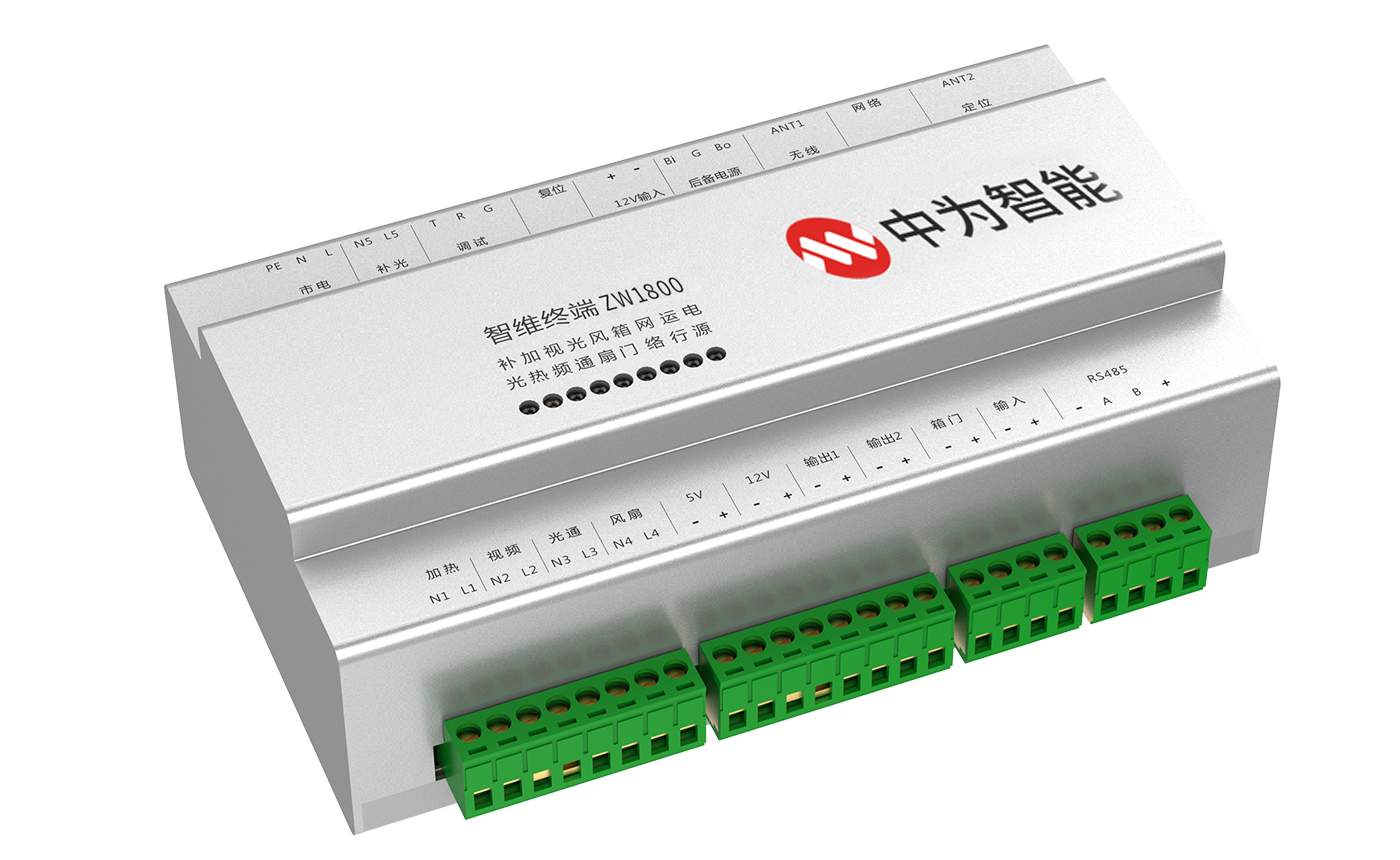

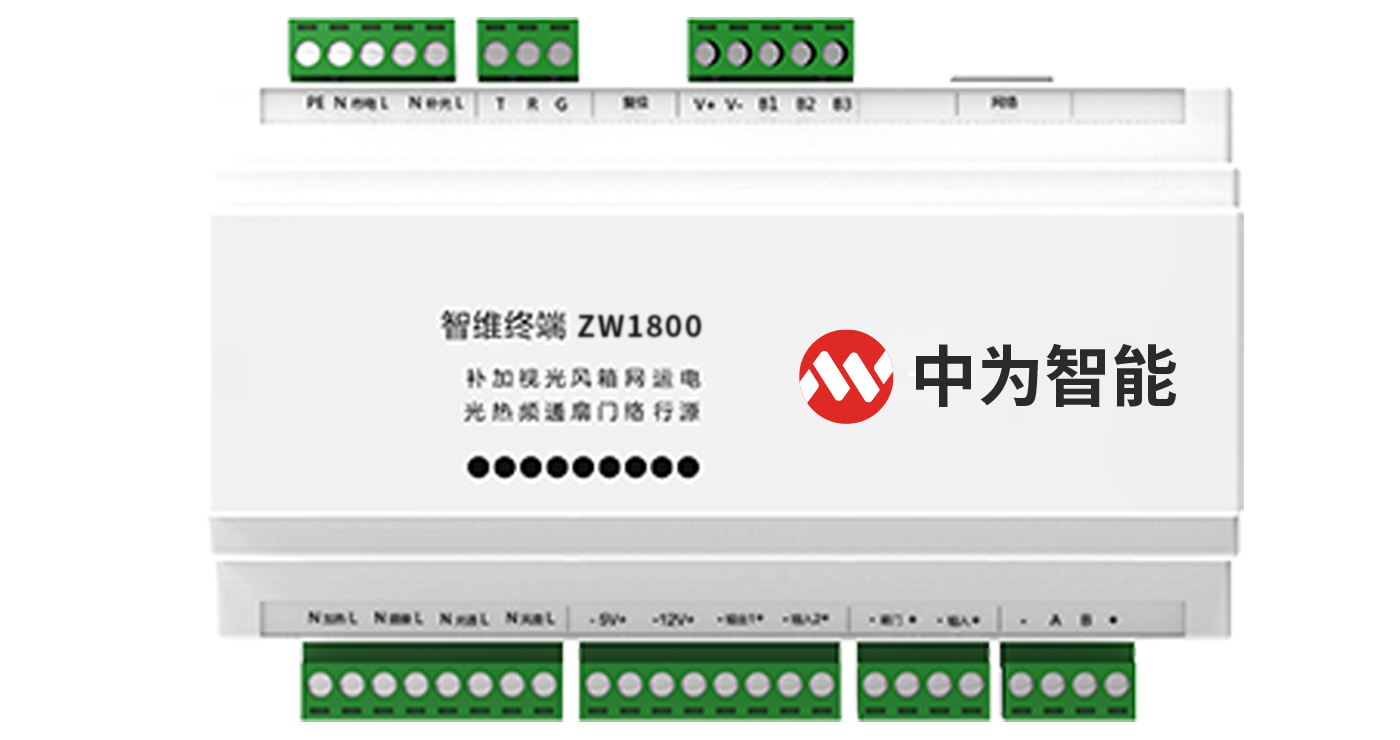

ZW1800 intelligent video power management controller, with intelligent monitoring function, can realize mains power outage detection, equipment power monitoring, temperature control fan, remote control, network transmission monitoring, cabinet temperature monitoring, monitoring box anti-theft and other functions; Real-time interaction with the monitoring center intelligent monitoring platform through the network to report on-site conditions. When there is a network interruption, equipment damage, main power interruption, equipment power status change, temperature too high in cabinet, and door is forced to open, the monitoring center will be actively notified. The monitoring center platform software enables remote centralized monitoring of front-end equipment. Through the monitoring center platform software, managers can manage the front-end equipment, remotely view the real-time operation status of front-end equipment, and operate the power supply status of equipment. When the front-end equipment is abnormal, the monitoring center can notify management personnel through mobile phone text messages, voice calls, and other forms, meantime make a work order to notify the maintenance personnel to troubleshoot in time.
Power the intelligent Manager and the optical communication module through micro UPS, upload power failure information to the management platform in real time, and distinguish the power failure and network disconnection status of the front end.
Adopt the dual state detection mechanism of front-end fault detection and back-end platform confirmation to analyze video faults in real time and efficiently.
The intelligent terminal can automatically analyze and judge the network status. When it is found that optical transceiver works abnormally, it can automatically restart the power supply of optical transceiver to reset and repair the network status.
Through comprehensive judgment of the working current, voltage and time of fill light, the working state of fill light is analyzed, and when the work is abnormal, the back end prompts an alarm in time.
Support remote restart of camera power supply to achieve remote fault repair; support timing control, can run offline, does not depend on the monitoring center, and can still be executed as planned in the event of network interruption.
The temperature linkage value can be set remotely. After the temperature reaches the set value, the fan can be automatically started to work; and the working status of the fan can be monitored in real time, and a failure report can be issued when the fan works abnormally.
It can be connected to the box door detection module to detect the box door state to prevent the equipment box from being prized off abnormally and equipment in box being stolen. Support multiple modes such as arming, disarming, and automatic disarming.
Support wireless data transmission by GPRS, CDMA, 4G and other methods. The data transmission mode supports wireless mode, wired mode, wired and wireless automatic switching mode, and wireless standby mode.
Built-in Beidou/GPS automatic positioning, supports automatic acquisition of latitude and longitude, and automatically identifies location information on the platform map. Support location change tracking, real-time update of location change information.
