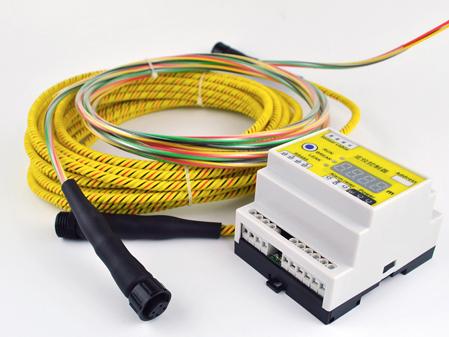

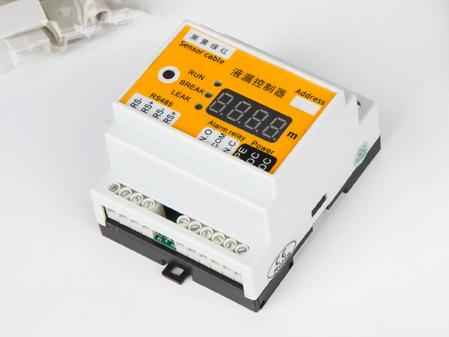

The positioning water leakage detector ZW600S is a high-performance water leakage detection equipment, suitable for four-core positioning water leakage sensing cables, point sensors and normally open dry contact devices (float switch, optical probe with adapter, limit switch Etc.) Supporting use. It can monitor sensing cables up to 500 meters long. Suitable for installation in conventional (non-hazardous) areas. Equipped with 5 small LED indicators (respectively display power, status, communication activities) and SPDT contact relays. It can be used as an independent leak detection alarm unit, and can also be used in networking with the main control system (computer or control automation system) through a simple shielded twisted pair RS-485 serial communication wiring.
1. The digital tube displays the leak location and cable fault；
2. It can record 32 leak alarm records；
3. Convenient 35mm DIN rail installation method；
4. 12V DC power supply, no polarity access；
5. LED display power, leakage, cable failure and communication status；
6. the relay output form normally open and normally closed coexist at the same time, can be freely selected；
7. Good anti-static, lightning protection and anti-surge technology to ensure reliable operation of the product；
8. A housing suitable for independent indoor installation or harsh outdoor installation conditions can be provided；
9. Multiple communication baud rates are optional, the module address and communication baud rate can be set by software, no switch is required；
10. Practical and reliable twisted pair serial RS-485 communication, the longest communication distance can reach 1200 meters, standard industrial modbus protocol.
